2022 – Week 19: Can you format the dashboard?

Introduction

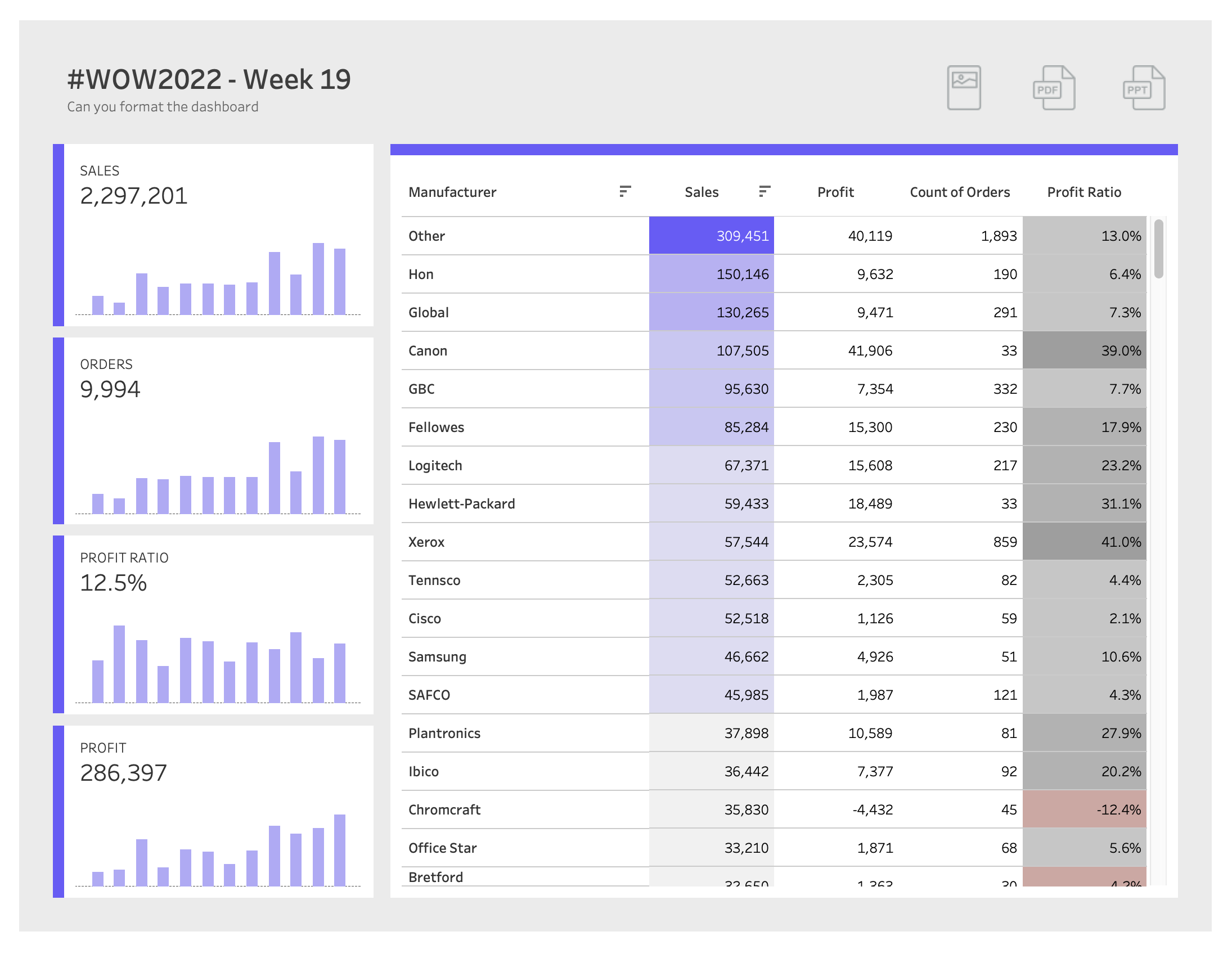

This week the challenge focuses on formatting and your ability to use containers. The goal is to create a near pixel perfect copy of the original. Focus on your use of containers along the way.

Requirements

  • Dashboard Size: 1100px by 850 px
  • 9 sheets
  • About 7 vertical containers
  • About 2 horizontal containers
  • Outermost padding of dashboard: 20 px
  • height of gray header to components: 110 px
  • Edge of gray box to components on left, bottom, and right: 30 px
  • Depth of purple tabs: 10px
  • Inner padding of all sheets: 10px
  • KPI Text:
    – Title 9pt
    – Metric: 15pt
    – Height: 75px
  • Width of KPI Cards: 300px
  • Height of KPIs Cards: Distributed Evenly
  • Match the formatting (#675CF3, #AFAAF3, Purple Sequential: #675CF3 with 8 steps, Gray-Red Gradient: #9A1500 to #777777 with 8 steps)
  • Get the Icons: IMG, PDF, PPT

Dataset

This week uses the superstore dataset for Tableau 2021.4. You can get it here at data.world

Attribute

When you publish your solution on Tableau Public make sure to take the time and include a link to the original inspiration.  Also include the hashtag #WOW2022 in your description to make it searchable!

Share

After you finish your workout, share on Twitter using the hashtag #WOW2021 and tag @LukeStanke, @_Lorna_Brown, @_hughej, @YetterDataViz and @HipsterVizNinja

Solution
